Description
36″ or 72″ Type J thermocouple with SMP connector and PFA insulation.
Type J 36″/72″ Thermocouple with SMP
Specifications
| Temperature Sensor | Thermocouple |
| Probe Measurement Range | -210 °C to +260 °C (-346 °F to +500 °F) |
| Dimensions | 36 inch: 36 in x 0.092 in x 0.056 in (914.4 mm x 2.337 mm x 1.422 mm) 72 inch: 72 in x 0.092 in x 0.056 in (1828.8 mm x 2.337 mm x 1.422 mm) |
| Weight | 36 inch: 0.63 oz (18 g) 72 inch: 0.99 oz (28 g) |
| Material | PFA Insulation, Glass filled High Temp Thermoplastic, Silicone Rubber |
| Approvals | CE |
Literature
| Thermocouple Specification Sheet |
Part Numbers
Type J 36″ Thermocouple with SMP (24 AWG PFA Insulated Type J Thermocouple 36″) — 901609-00
Type J 72″ Thermocouple with SMP (24 AWG PFA Insulated Type J Thermocouple 72″) — 901610-00
Compatible Products
-
RFTCTemp2000A
$329.00 Select options This product has multiple variants. The options may be chosen on the product page -
TC101A
$199.00 Select options This product has multiple variants. The options may be chosen on the product page -
TCTemp2000
$589.00 Add to cart -
TCTempX
$649.00 – $1,599.00 Select options This product has multiple variants. The options may be chosen on the product page -

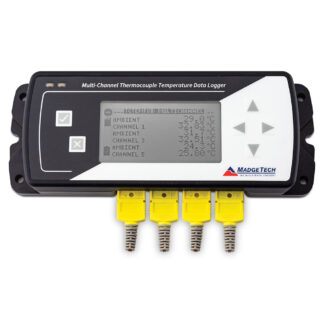

TCTempXLCD
