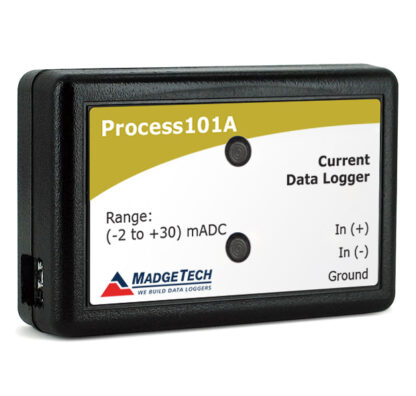

Process101A Low-Level DC Current Data Logger
MadgeTech-Data-Logger-Process101A-web-1_New Label
MadgeTech-Data-Logger-Process101A-web-2_New Label
Process101A Low-Level DC Current Data Logger

The Process101A is a compact, low level DC current data logger. Includes standard calibration certificate. Read More >

Key Features:

  • Compact Size
  • Configurable Alarms
  • Available in 3 Measurement Ranges

Availability: 5-7 Business Days

Find a Distributor

$219.00

MadgeTech recommends annual calibration.

Description

Please accept YouTube cookies to play this video. By accepting you will be accessing content from YouTube, a service provided by an external third party.

YouTube privacy policy

If you accept this notice, your choice will be saved and the page will refresh.

The Process101A is a compact data logger that measures and records low-level DC currents. Available in 3 measurement ranges (30 mA, ±160 mA and ±3 A), the Process101A offers a 10-year battery life, ideal for long-term deployments.

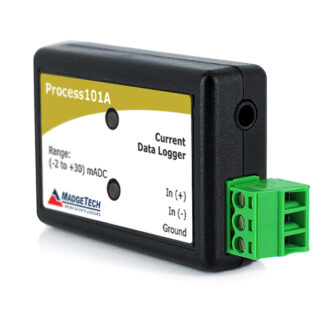

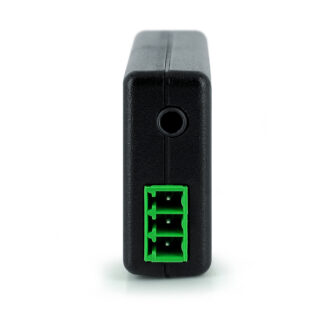

The Process101A features a 4 Hz reading rate and storage capacity of 2,095,104 readings. Equipped with multiple start/stop modes, the Process101A can be programmed to start up to 18 months in advance and has user-specified high/low alarms. Its screw terminal block is designed to easily connect and disconnect to the logger body, while keeping the wiring to the terminal block.

The Process101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

General

Memory2,095,104 readings
Reading Rate4 Hz to 1 reading every 24 hours
Baud Rate115,200
Channels1
LED IndicatorsRed & Green
Battery Life10 year battery life typical, at a 15 minute reading rate
MaterialPolycarbonate
Dimensions1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment-40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface PackageIFC200
ApprovalsCE

Current

Current Range30 mA: -2 to 30mA
±160 mA: ±160 mA
±3 A: ±3 A
Max Voltage: Inputs & Ground0 to 2.5 V
Current Resolution30 mA: 0.5 μA
±160 mA: 5 μA
±3 A: 100 μA
Current Calibrate Accuracy30 mA, 160 mA: ±0.05 %FSR
3 A: ±0.15 %FSR
Current Input Impedance30 mA: 10 Ω, ±1%
±160 mA: 1 Ω, ±1 %
±3 A:<0.05 Ω

Literature

Process101A Product User Guide
DOC-1219035-00
Process101A Specification Sheet
DOC-1249009-00

Support Videos

Process101A | Changing the Battery

Accessories

Part Numbers

Process101A (20mA) — 901063-00
Process101A (±160mA) — 901059-00
Process101A (±3A) — 901067-00
